Model/Size: DF 2.90

Description: Torque Limiter

Type: Friction Type

Bore: 25mm H7

Keyway: to BS 4235

Bore special feature:

Spring Set: T3 (A3G3)

Torque: 185Nm - 450Nm

Serial Number: 13427292

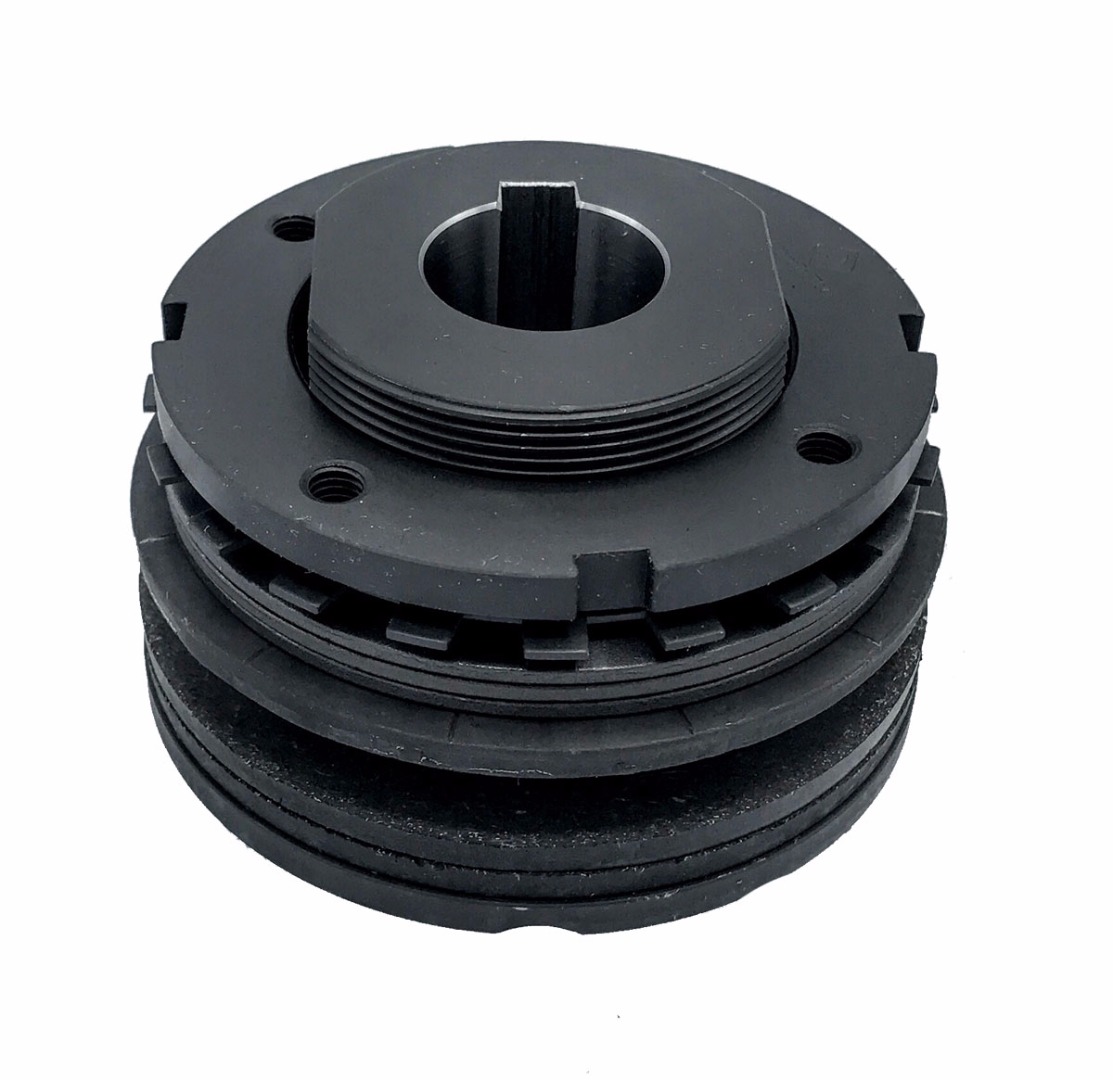

Friction Torque Limiter DF 2.90 25mm Bore features:-

• Simple and compact solution
• Version with coil springs for pairs and fine adjustment of the couple: ./CM
• Available in corrosion: DF/EA.
• Available with customized alignments ("L") interchangeable with other models on the market.
• Available with radial ring statically balanced: ./GR.
• Up to 23 000 Nm of torque and 140mm bore.
