Product description

  • REO444L1B006CA Tachogenerator Radio Energie
  • REO444
  • REO444L
  • RE0444L
  • REO 444L
  • RE.O444
  • RE.0444L1
  • Tacogenerator
  • Taco-genenerator

Flange Mounted, Short Body Length 71.5mm Excluding Shaft

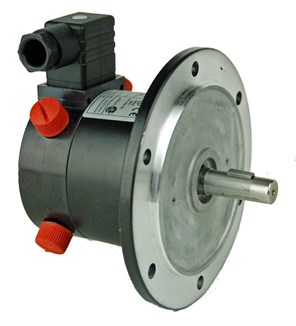

Radio Energie REO444L1B006CA Tachogenerator

REO444L1B006CA Tachogenerator Radio Energie Tachogenerator 60V Flange Mounted is used as speed monitoring device. They convert rotating movement (RPM) into a proportional DC voltage with almost nil propagation delay and have no need for an energy supply.

The REO 444 L1 B0.06CA Radio Energie tachogenerator is most often used when mounted on to the back of a DC Motor. It supplies the connected DC drive with a voltage that is linear to speed typically expressed as a voltage against speed e.g. 60V/1000RPM.

Transdrive are the Main UK Distributor for REO444 L1 Radio-Energie Tachogenerator, (Tachos). Radio Energie was founded in 1928 to produce electric generators and convertors to supply power to radio telephonic and radio telegraphic receivers and transmitters. Hence its name Radio Energie. In 1949 Radio-Energie started to produce Tachogenerators for industry and have produced a wide range of high quality and reliable Tachogenerators ever since. The REO444L quickly established itself as the 'Industry Standard' and with its many options it quickly became the engineer's choice. It is readily available from Transdrive the sole UK distributor as is the rest of the RE0444 range.

Main characteristics of the REO444L1B006CA Tachogenerator from Precilec

  • REO 444 L1 B0.06CA Radio Energie Tachogenerator has 60V/1000rpm output (other voltages available please call)
  • REO 444 L1 B0.06CA Radio Energie Tachogenerator is Flange Mounted
  • REO 444 L1 B0.06CA Radio Energie Tachogenerator has EG grade brushes, 10,000 rpm max speed

IP54

Radio Energie Part Number /0000156

The REO444 range are no longer 'UL' or 'CSA' approved.
  • 60V/1000rpm output
  • EG grade brushes, 10,000 rpm max speed
  • Radio Energie Industry standard mounting 11mm diameter shaft 115mm diameter flange
  • Almost maintenance free (periodic check of brushes required)
  • Wide speed range
  • Long life brushes
  • Direction of rotation indicated by polarity of voltage output
  • External power source not required
