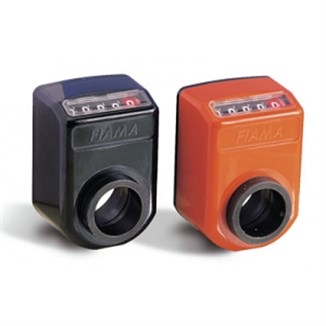

Hollow Shaft Position Indicators OP9 Features:
This is a 5-digit indicator to adjust and to read directly a motion or an angle, obtained by a drive shaft rotation.
- Shock-proof self-extinguishing technopolymer case. Protection IP64. Max. temperature: 80°C.
- Reading with 18° tilted or frontal view.
- 5 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 5 black digits). Readings until 99999. Digit height: 7 mm., with. Model OP9T: 4 digits with Vernier.
- On request special ratios and measures in Inch.
- OP9 standard shaft hole .30, model OP9F35 hole .35, different holes with reducing bush.
- Lock-pin: centre distance 40 mm (standard) or 30 mm (indicate I30).
- Model IN with inox metallic parts.
- Colours: orange RAL 2004, black RAL 9005.
- Available attachments: anodized aluminium shaft block flange.
Overall Dimensions
![Fiama op9 overall dimensions](/images/op9-overall-dimensions.jpg)
- 1. 49x15 embedding
- 2. Lock pin
- 3. Fixing screw
- 4. Dust seal
Mounting Position
![Fiama op9 mounting position](/images/op9-mounting-position.jpg)
Assembling
Introduce the indicator through the hollow shaft and set the lock pin into the .6 arranged hole.Set the instrument on the inner (zero) value and block the security dowel.
