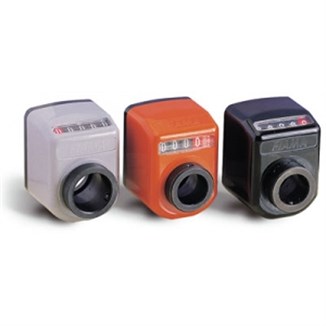

Hollow Shaft Position Indicators OP6 Features:
This is a 5-digit indicator to adjust and directly read a motion (or an angle) obtained by a drive shaft rotation. Shock-proof self-extinguishing technopolymer case.
- Shock-proof self-extinguishing technopolymer case. Protection IP64. Max. temperature 80°C.
- Reading with 18° inclined or frontal view. 5 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 5 black digits). Readings until 99999. OP6T model: 4 digits with Vernier. Digit height: 6 mm.
- On request special ratios and measures in Inch.
- OP and OP6T standard shaft hole 20H7, models OP6F25 and OP6TF25 with 25 hole. Other holes smaller than 20 with a reducing bush.
- As option (c) security dowel 10,5/12 mm.
- Model IN with inox metallic parts.
- Colours: orange RAL 2004, black RAL 9005, red RAL 3000, grey RAL 7004.
- Available attachments: shaft block flange, polycarbonate spacer flange, anodizid aluminium movement knob.

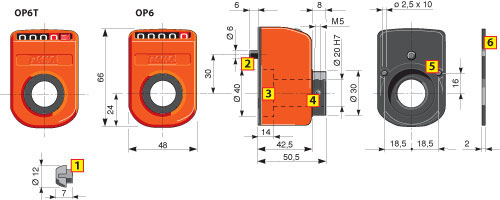

Overall Dimensions
![Fiama op6 overall dimensions](/images/op6-dimensions.jpg)
- 1. Lock pin 10,5/12
- 2. Lock pin
- 3. 40x14 embedding
- 4. Fixing screw
- 5. 2,5x12 fixing holes
- 6. Dust seal

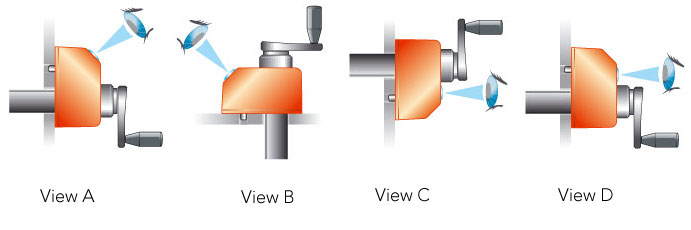

Mounting Position
![Fiama op6 mounting position](/images/op6-mounting-position.jpg)
Assembling
Introduce the indicator through the hollow shaft and set the lock pin into the .6 arranged hole. Set the instrument on the inner (zero) value and block the fixing screw.
