Hollow Shaft Position Indicators OP2 Features:

This is a 3 digit indicator to adjust and directly read a motion (or an angle) obtained by a drive shaft rotation, particularly suitable for little adjustments in small spaces.

• Shock-proof, self extinguishing technopolymer. Protection IP64. Max. temperature 80°C.

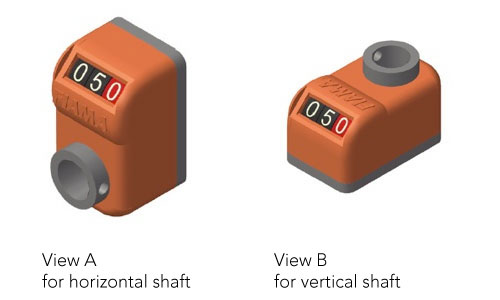

• Inclined view at 45° for horizontal shafts and for vertical shafts, excellent readabilty given by the means of magnifying window.
• 3 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 3 black digits). Reading until 999. Digit height 6 mm
• On request special ratios and measures in Inch.
• Standard shaft hole Ø8, Ø10 or Ø12.
• Distance of anti-rotation lock-pin standard18mm, on request 22mm.
• Hollow shaft and metalic parts (inner and external) in stainless steel as standard version.
• Colours: orange RAL 2004, black RAL 9005, grey RAL 7004, glossy finish.
• Available attachments: anodized aluminium shaft block flange, polycarbonate spacer flange, anodizid aluminium movement knob.

Overall Dimensions

• A. Hollow shaft Ø8-10-12
• B. Lock pin
• C. Embedding Ø17x1
• D. Fixing screw
• E. Dust seal

Mounting Position

Introduce the indicator through the hollow shaft and set the lock pin into the ø5 or ø6 ) arranged hole. Set the instrument on the inner (zero) value and block the fixing screw.

Display

Rotation
